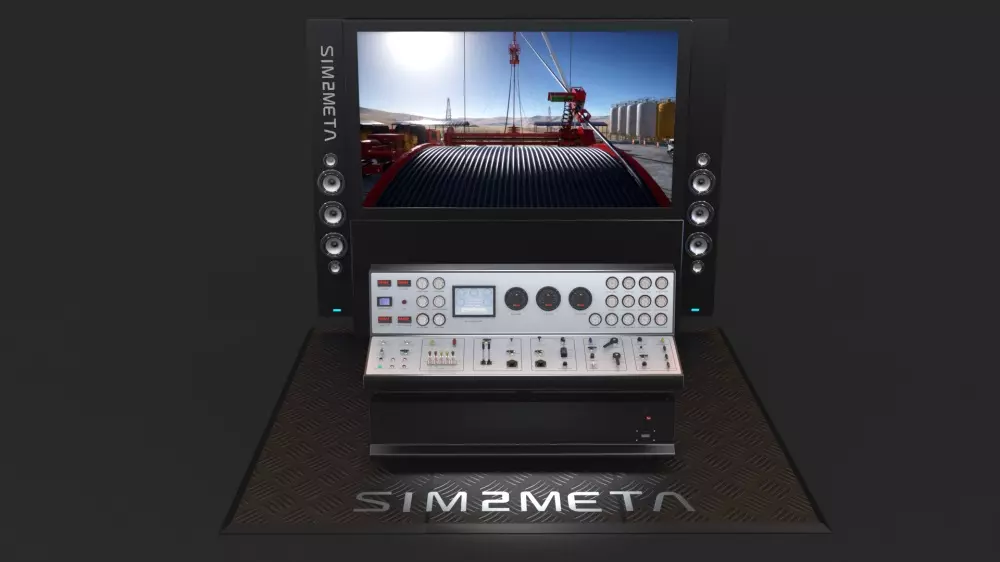

Coiled Tubing Simulation Training System

Coiled Tubing Simulation Training System

Coiled tubing simulation training system is designed according to the international general equipment, equipped with a set of operation consoles, and displaying operation scene through 3D animation. This system provides trainings on well logging, stimulation, workover, drilling and accident handling. It consists of operation console, 3D animation display system, parameter auxiliary console and instructor station. The optional devices include choke manifold, choke console, auxiliary truck and production tree.

Training Items:

Normal operation:

  • Pulling and running coiled tubing
  • Drilling bridge plug
  • Sand washing
  • Gas lift discharging
  • Drag fracturing

Well control operation:

  • Surface coiled tubing break and leaking
  • Stripper with/ without pressure leaking
  • Gas lift coiled tubing break
  • Joint between BOP and production leaking
  • Coiled tubing between injection head and BOP break
  • Coiled tubing above BOP leakage in gas lift operation

System Features

  • Human-computer interactive, operable hardware, vivid graph, and lifelike sound effect
  • Highly simulating the operation that cannot be carried out by real equipment training
  • Intelligent scoring, fair assessment
  • Powerful software functions, friendly interface, easy to learn and use
  • Strict mathematical model, satisfy actual technology requirement

Parameters

  • Operation voltage: 220V 50Hz AC
  • Power consumption: < 4000 Watt
  • Operating temperature: 0-30 degrees Celsius
  • Display resolution: ≥5400*1920
