Oil and Gas Gathering and Transportation Simulation Training System

Oil and Gas Gathering and Transportation Simulation Training System

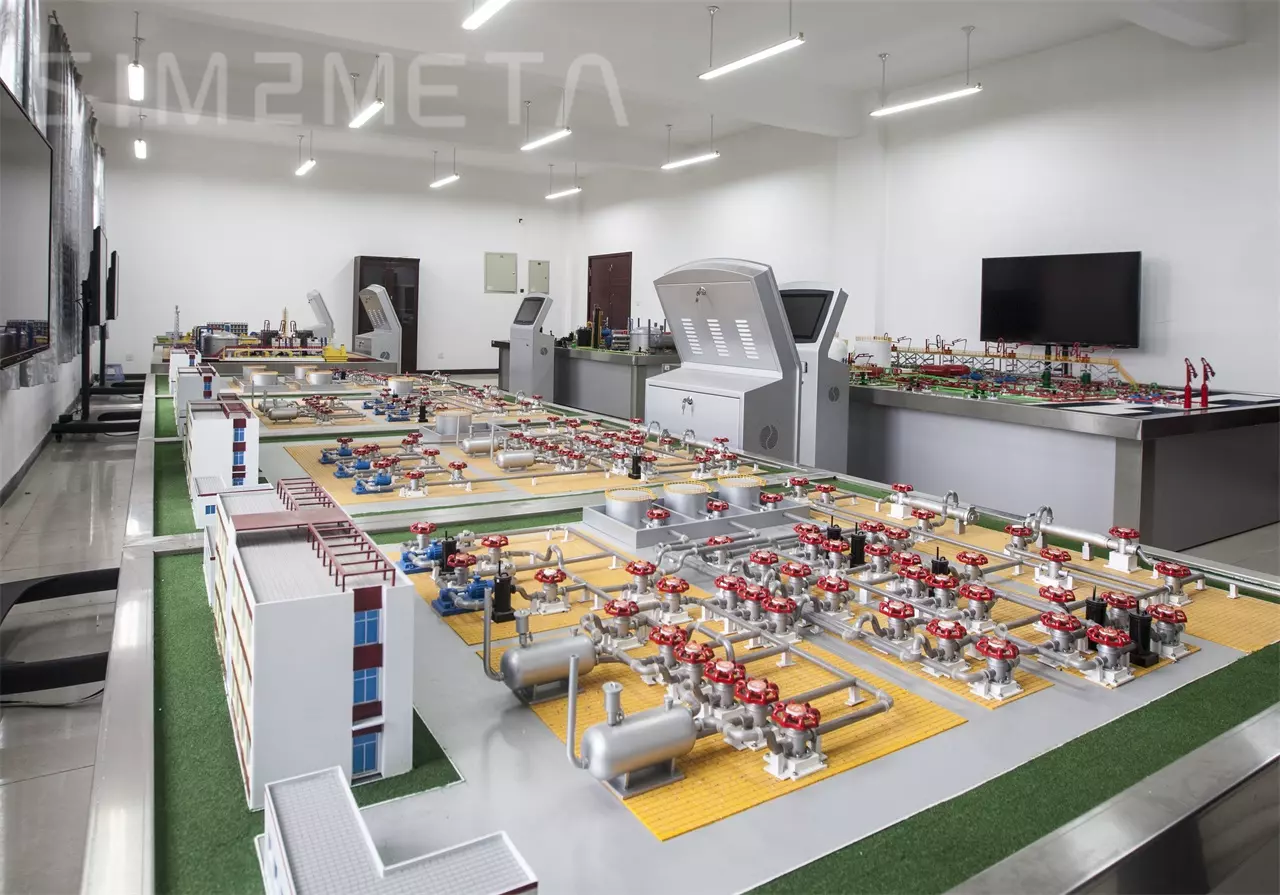

Oil and gas transportation simulating system is based on national standards for vocational technology and vocational skills certification standards combined with reality, using electronic sand table, process board, touch screen, and computer virtual reality technology to simulate oil and gas storage and transportation process from wells to joint stations, oil depots, and exporting. It can simulate technological links, process, and equipment such as oil and gas collecting, gas-liquid separating, crude dehydrating, crude stabilizing, sewage treating, and gas storing and transporting. Technological staff from joint station, crude long-distance pipeline pumping station, pressurized sub-transmission station, oil depots, and LNG terminal can get simulating training for the system.

Training Items:

  • 1. Wellhead down process
  • 2. Separator oil inlet operation
  • 3. Separator stopping operation
  • 4. Separator starting
  • 5. Separator down running operation
  • 6. Single well measurement operation
  • 7. Crude oil dehydrating operation
  • 8. Parameter adjusting operation of crude oil dehydrating
  • 9. Crude oil stabilizing starting operation
  • 10. Crude oil stabilizing stopping operation
  • 11. Parameter adjusting operation of crude oil stabilizing
  • 12. Gas dehydrating operation
  • 13. Sewage treating facilities starting operation
  • 14. Sewage treating facilities stopping operation
  • 15. Sewage quality controlling operation16.Trains transceiver operation at oil depots
  • 17. Vehicles transceiver operation at oil depots
  • 18. Waterway transceiver operation at oil depots
  • 19. Tank pouring operation at oil depots
  • 20. Gas separating operation at pressurized sub-transmission station
  • 21. Gas regulating operation at pressurized sub-transmission station
  • 22. Gas measuring operation at pressurized sub-transmission station
  • 23. Tube clearing ball transceiver operation at pressurized sub-transmission station
  • 24. LNG terminal unload operation
  • 25. LNG vaporization transmission operation
  • 26. LNG flash steam treating operation
  • 27. LNG tank circulation operation
  • 28. Pump to pump sealed transferring operation at crude oil long-distance pumping station
  • 29. Tank side connecting operation at crude oil long-distance pumping station
  • 30. Multi-station transferring operation at crude oil long-distance pumping station
  • 31. Reverse transferring operation at crude oil long-distance pumping station

System Features

  • Simulating real devices and equipments, zooming in a certain proportion
  • Showing and simulating the main process and operation of oil and gas transportation system
  • Electronic sand table shows devices layout of each aspect
  • 3D animation shows structure and principle of main devices
  • Using touch screen and virtual reality technology, corresponding to real technical demands

Parameters

  • Operation voltage: 220V 50Hz AC
  • Power consumption: < 4000 Watt
  • Storage temperature: 0-40 degrees Celsius
  • Operating temperature: 0-40 degrees Celsius
  • Display resolution: ≥1024*768
  • Projection instrument brightness: ≥5000 ANSI lumen
  • Area: ≥200 square meters
